3/11/19 RELEASE REVIEW

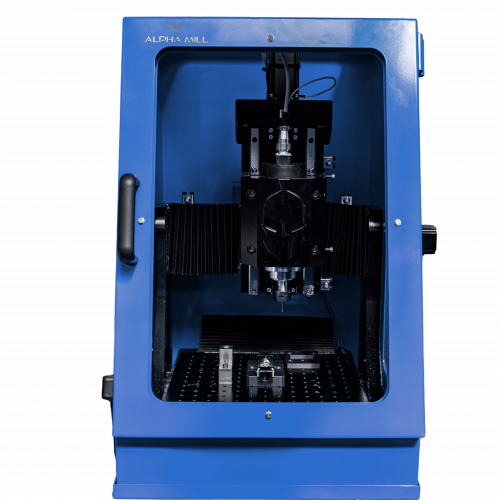

A Hobby CNC Mill tough enough to make and Learn
Welcome to AlphaMil.
Made in Ireland, Made to last, Made to Mill

Features
Solid Aluminium 30mm thick construction frame with black anodized finish
Safety enclosure to prevent debris or dust
Work area
X: 180mm
Y: 260mm
z: 140mm
16MM Ball Screws to prevent backlash
20mm square quid rails

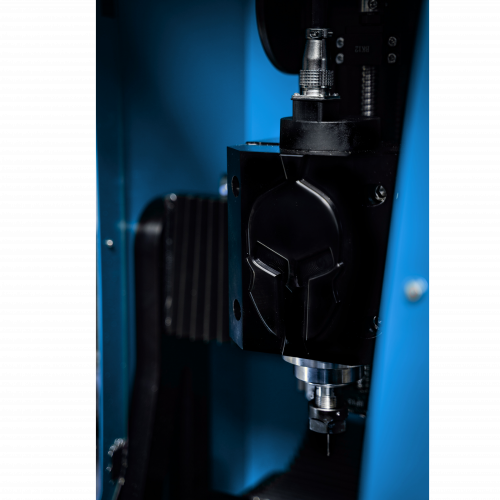

Aircool Spindle 1.5 KW 24,000RPM
Nema 23, step motors
Standard ER16 Collet for tool compatibility
Repeatability ± 0.010mm
Program Resolution 0.00000001mm
M6 threaded pattern bed to mount fixturing and vices
Safety and limit switches, Door switch and 3x Emergency shutoff switch
UCCNC software
Weight 100KG
See it in action

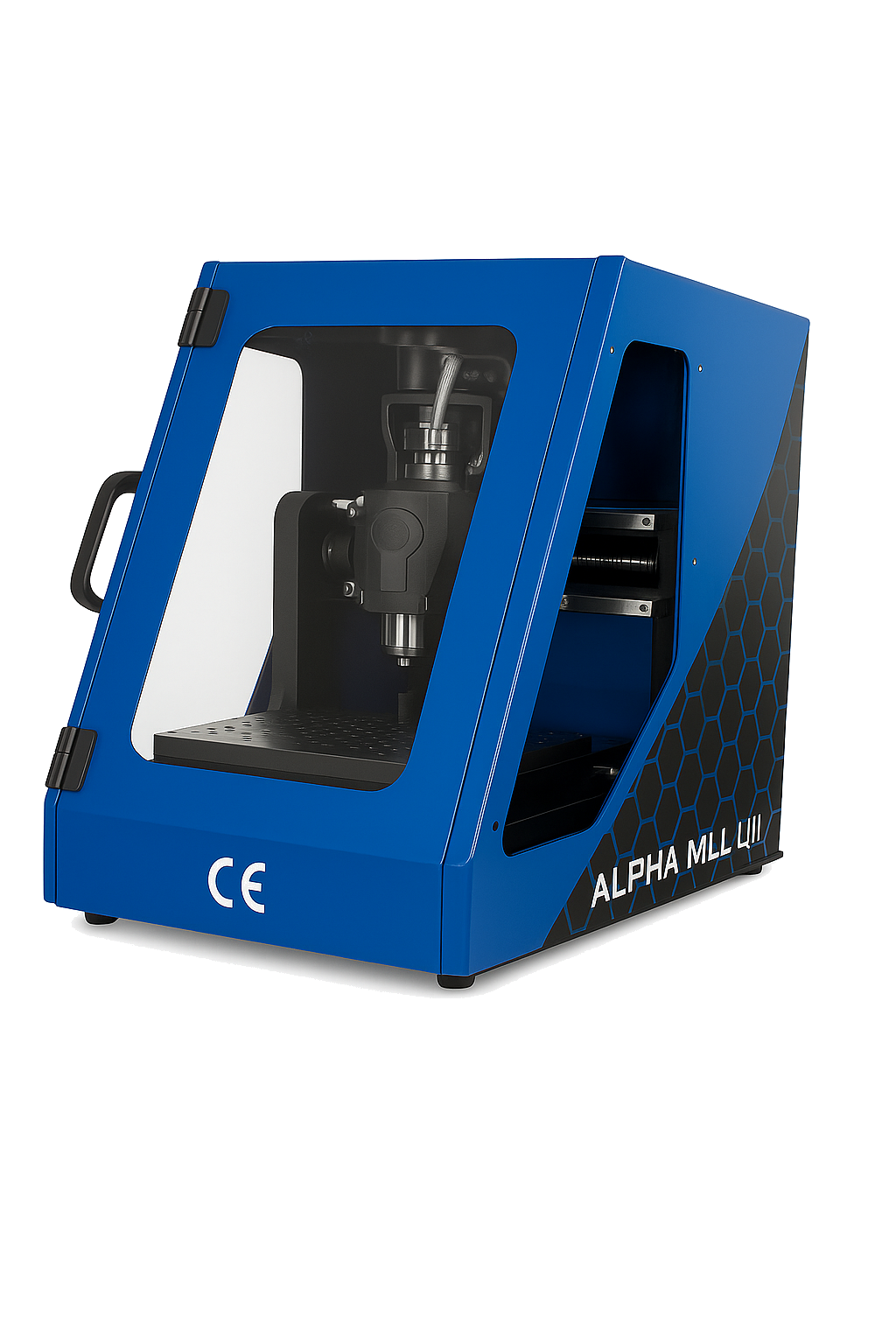

Alpha Mill Desktop CNC Mill
